Two Flute Ball Nose Bit for Metal - 1/8″ Shank

Product image 1
1 / 4

Two Flute Ball Nose Bit for Metal - 1/8″ Shank

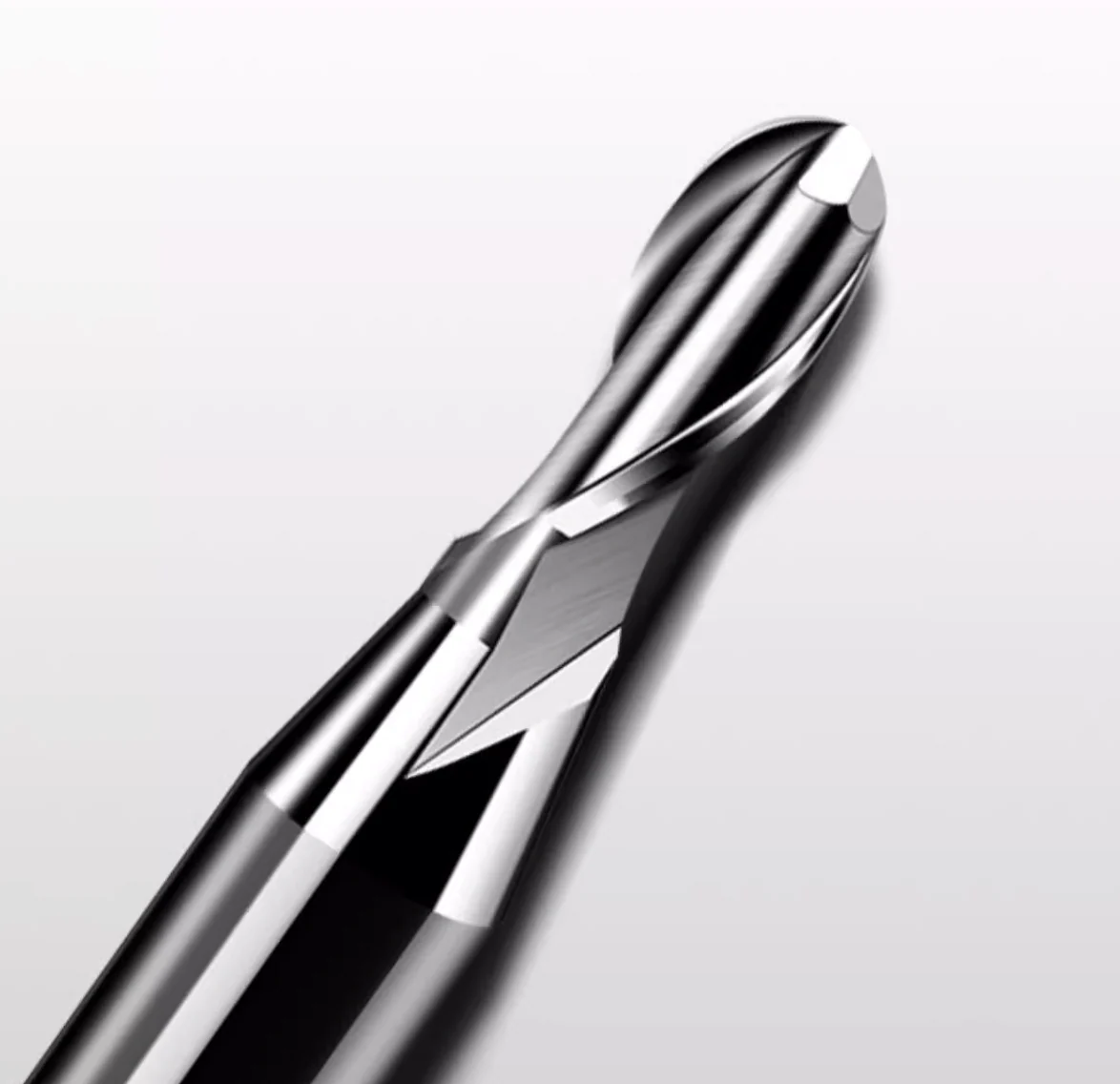

The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.

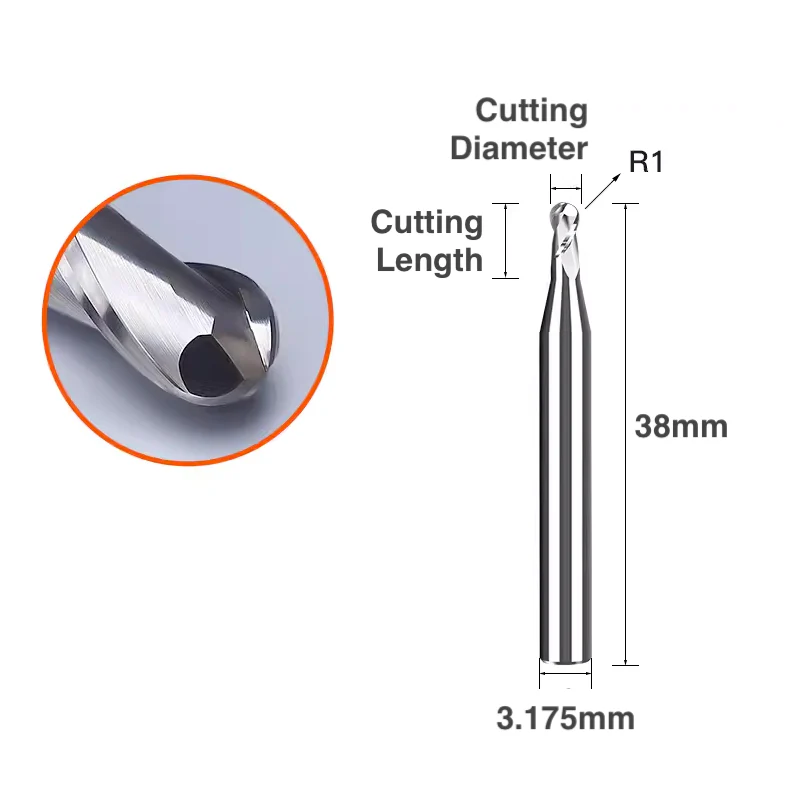

Specifications:
Shank Diameter: 3.175mm
Total Length: ~ 38mm
Material: Solid Carbide

Applications:
Curve surface milling, Relief milling, etc.

Materials:
Wood, Plastics, Composite materials, Non-Ferrous Metal, etc.


Tool Reference Parameters:

* RPM: SpindleSpeed(RPM) / Feed: FeedRate(mm/min)
PFeed: PlungeFeedRate(mm/min) / DOC: Depth of Cut(mm)

Tools Aluminum Brass Carbon Fiber Copper Hardwood PCB Plastic Softwood
1*3mm ball nose(Metal) RPM:12000
Feed:500
PFeed:200
DOC:0.2 		RPM:12000
Feed:500
PFeed:200
DOC:0.1 		- RPM:12000
Feed:500
PFeed:200
DOC:0.1 		RPM:12000
Feed:500
PFeed:200
DOC:1 		- RPM:12000
Feed:500
PFeed:200
DOC:1 		RPM:12000
Feed:500
PFeed:200
DOC:2
1.5*4.5mm ball nose(Metal) RPM:12000
Feed:500
PFeed:200
DOC:0.2 		RPM:12000
Feed:500
PFeed:200
DOC:0.1 		- RPM:12000
Feed:500
PFeed:200
DOC:0.1 		RPM:12000
Feed:500
PFeed:200
DOC:1 		- RPM:12000
Feed:500
PFeed:200
DOC:1 		RPM:12000
Feed:500
PFeed:200
DOC:2
2*6mm ball nose(Metal) RPM:12000
Feed:500
PFeed:200
DOC:0.2 		RPM:12000
Feed:500
PFeed:200
DOC:0.1 		- RPM:12000
Feed:500
PFeed:200
DOC:0.1 		RPM:12000
Feed:500
PFeed:200
DOC:1 		- RPM:12000
Feed:500
PFeed:200
DOC:1 		RPM:12000
Feed:500
PFeed:200
DOC:2
2.5*7.5mm ball nose(Metal) RPM:12000
Feed:500
PFeed:200
DOC:0.2 		RPM:12000
Feed:500
PFeed:200
DOC:0.1 		- RPM:12000
Feed:500
PFeed:200
DOC:0.1 		RPM:12000
Feed:500
PFeed:200
DOC:1 		- RPM:12000
Feed:500
PFeed:200
DOC:1 		RPM:12000
Feed:500
PFeed:200
DOC:2
3.175*10mm ball nose(Metal) RPM:12000
Feed:500
PFeed:200
DOC:0.2 		RPM:12000
Feed:500
PFeed:200
DOC:0.1 		- RPM:12000
Feed:500
PFeed:200
DOC:0.1 		RPM:12000
Feed:500
PFeed:200
DOC:1 		- RPM:12000
Feed:500
PFeed:200
DOC:1 		RPM:12000
Feed:500
PFeed:200
DOC:2
